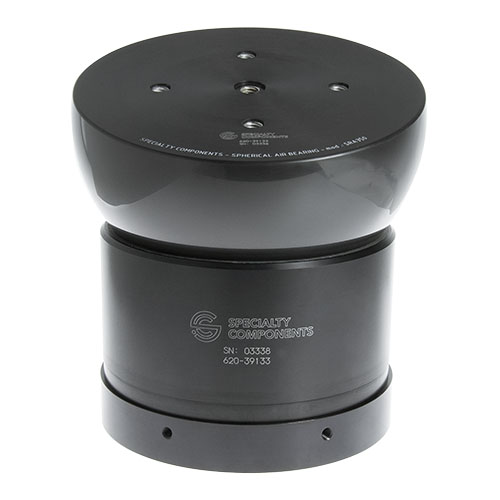

Spherical Air Bearings SRA350-R45 / 620-39133
The SRA350-R45 air bearing has a stiffness of nearly 2.0 million pounds per inch and supports 600 pounds of vertical load. Typical for the SRA series, these spherical air bearings provide smooth, frictionless rotary motion surpassing performance of the finest rolling element bearings by orders of magnitude. Pneumatic hammering of the air film can plague an air bearing design and result in unstable bearing performance. Unlike other spherical air bearings, the SRA series eliminates this possibility by including vibration dampening features within the design.
| Downloads: | |
|---|---|
| Drawing Download | |
| User Instructions | |
| Comparison Table | |
| Performance: | |
| Load Capacity, lbs[N] | 590 [2596] |
| Side Load Capacity, lbs[N] | 153 [673] |
| Stiffness, lbs/inch [N/µm] | 1995000 [346] |
| Flow Rate, scfh [slpm] | 7.0 [3.3] |
| Air gap, microinches [µm] | 200 [5] |
| Natural Frequency*, Hz | 182 |
| Drag Torque at 30 rpm, oz-in [N-m] | 1.56E-02 [1.10E-04] |
| Physical Properties: | |

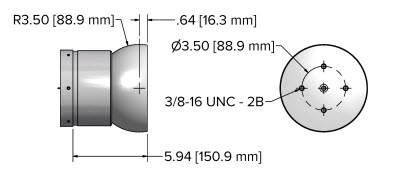

| Base Diameter, inches [mm] | 6.0 [152.4] |
| Bearing Height, inches [mm] | 5.9 [150.9] |
| Pedestal Adapter Height, inches [mm] | 1.0 [25.4] |
| Spherical Radius inches [mm] | 88.9 [3.5] |
| Rotational Travel, deg | 45 |
| Sphere mounting bolt circle diameter, inches [mm] | 3.500 [0.1] |
| Sphere mounting thread, Unified | 3/8-16 |
| Air Supply fitting thread, imperial [metric] | M5 [10-32] |
| Material | Aluminum |
| Assembly Weight, lbs [N] | 21.000 [92.4] |
| Sphere Weight, lbs [N] | 11.100 [48.8] |
| Installation Requirements: | |
| Sphere Mating Surface Required Flatness, inches [µm] | .002 [50] |
| Mating Surface Roughness, microinches [µm] | 16 [0.4] |
| Rated Vacuum, inHg [Mpa] | 20 [.06] |
| Rated Supply Pressure, psig [Mpa] | 80 [0.55] |
| Max. Supply Pressure, psig [Mpa] | 100 [0.69] |
| Air Quality | ISO Class 3 or better preferred |
